Thread: 30A fitted to MTS250S

  1. #1
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default 30A fitted to MTS250S

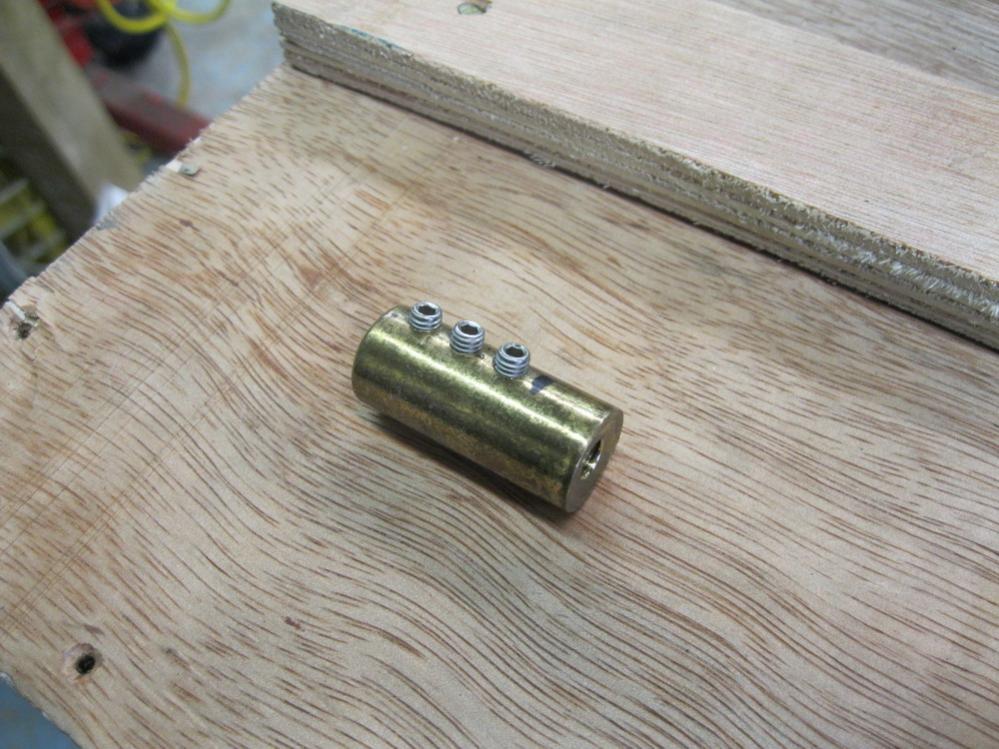

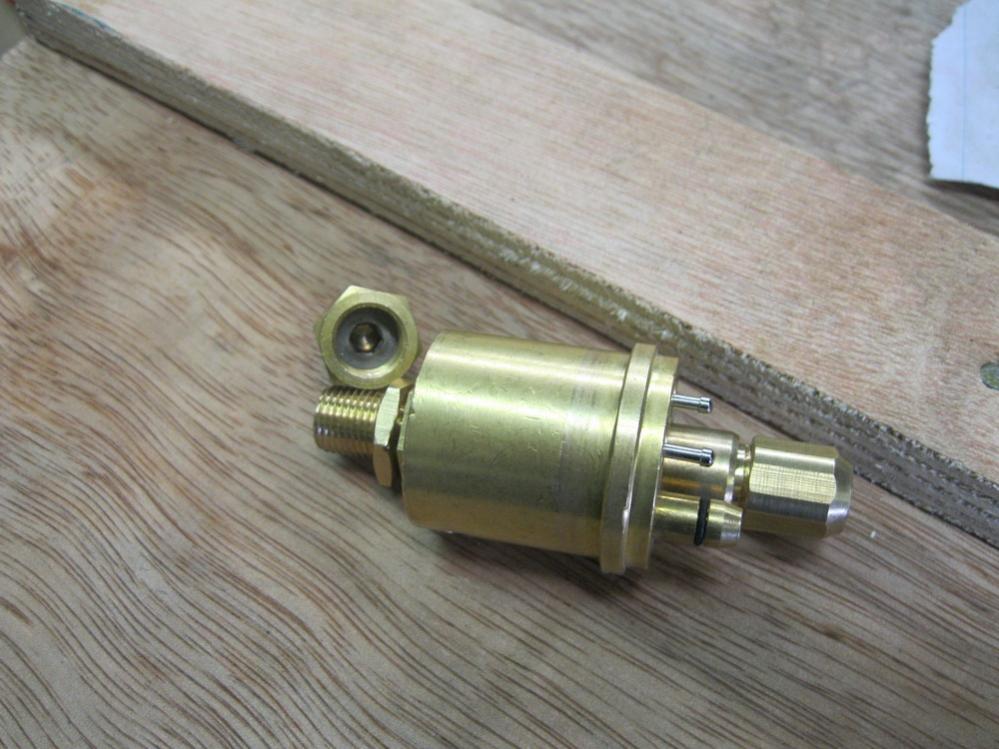

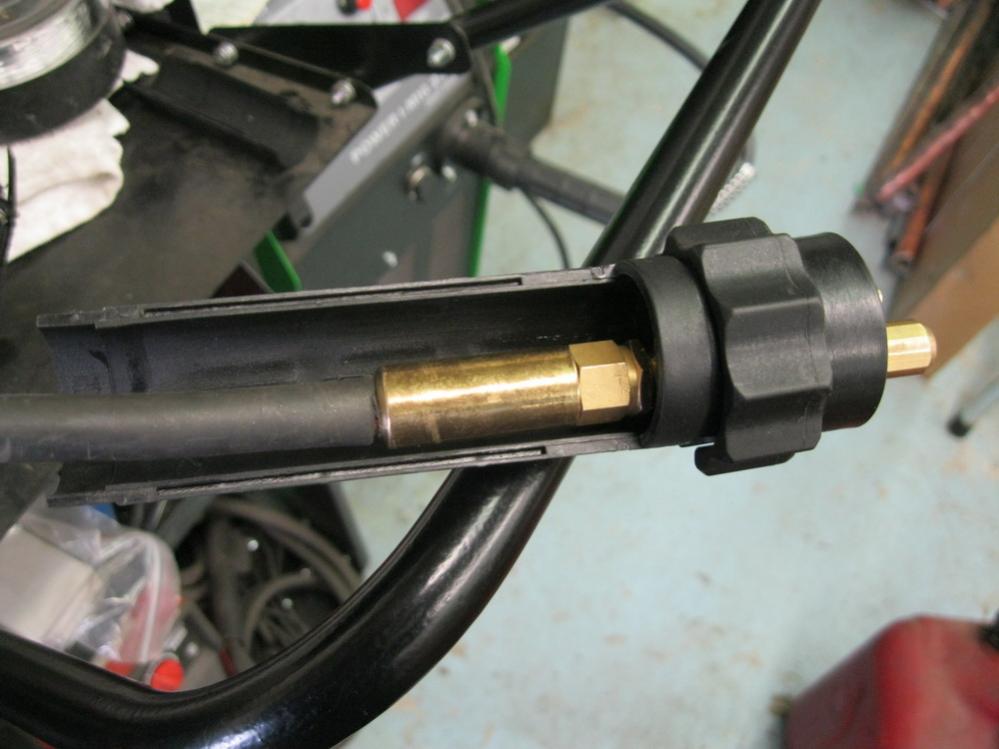

    I fitted a 30A to my MTS250S to use .045 wire and .062 it works just fine thanks to Yofish to tell me which 30A to buy. Cut the end off the power and put it on to the EURO end just and a brass fitting to join then together. Cut the plug off and rewired it to the MTS250S plug. Set the welder to old spec's and did a test run adjusted the setting and welded heaver aluminum come out just fine and the gun did not even get hot.
    Click image for larger version.

Name:	30A end cut off for new end EURO 1.jpg
Views:	510
Size:	113.8 KB
ID:	12177Click image for larger version.

Name:	30A end cut off for new end EURO 2.jpg
Views:	502
Size:	94.1 KB
ID:	12178Click image for larger version.

Name:	30A end cut off for new end EURO.jpg
Views:	473
Size:	113.0 KB
ID:	12179Click image for larger version.

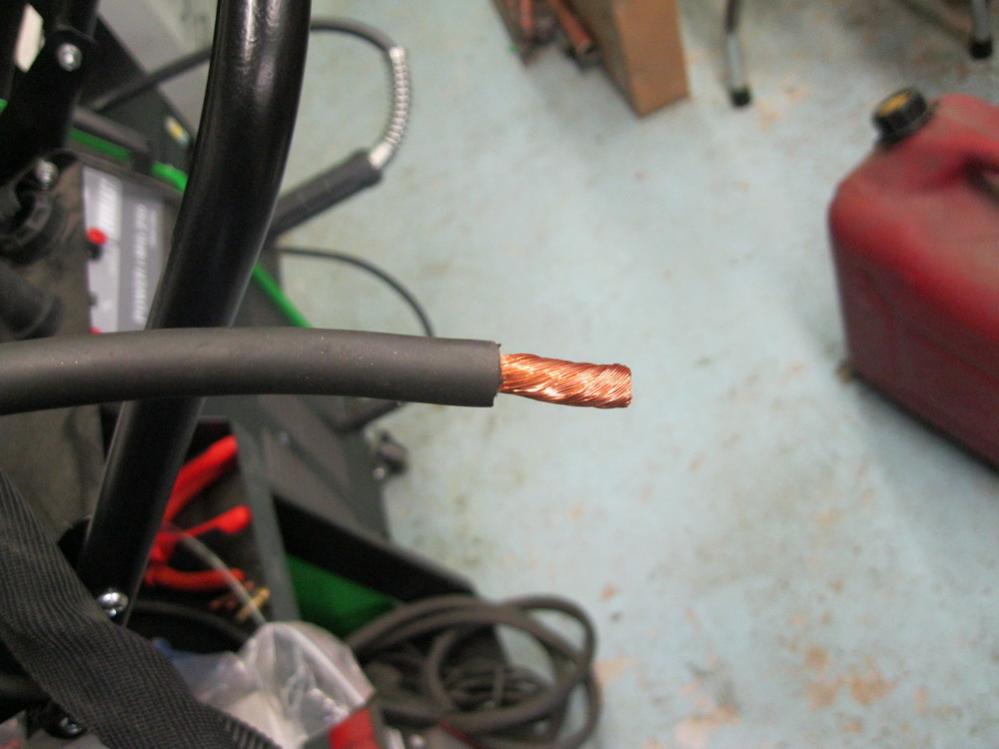

Name:	30A end cut off.jpg
Views:	499
Size:	56.8 KB
ID:	12180Click image for larger version.

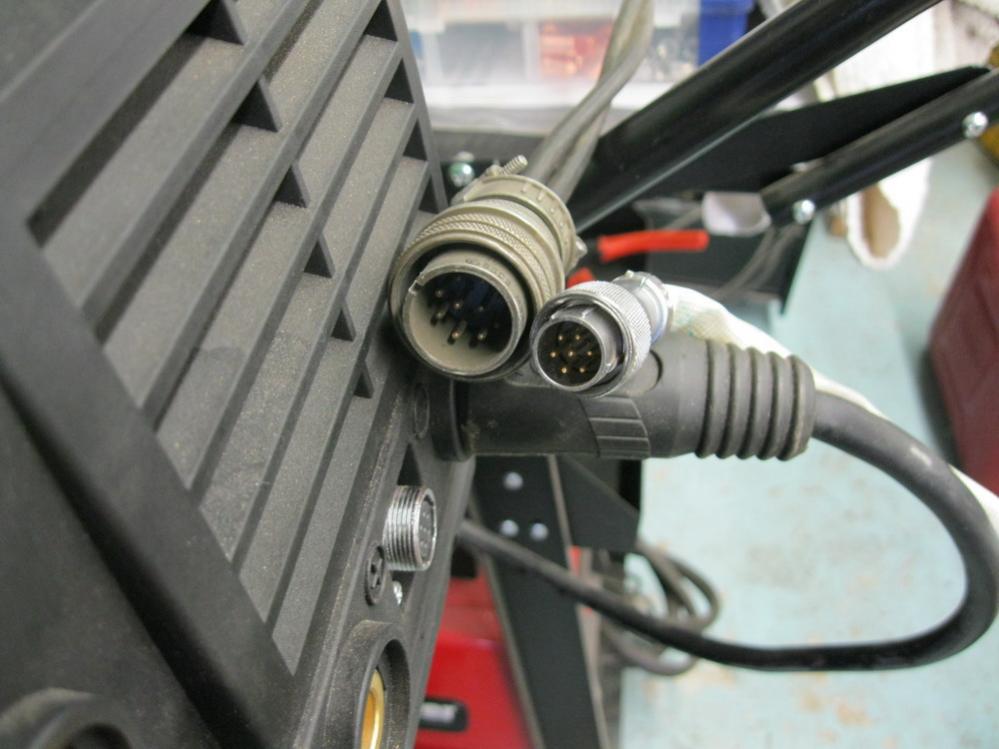

Name:	30A plug to MTS250S plug.jpg
Views:	511
Size:	73.1 KB
ID:	12181
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  2. #2
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

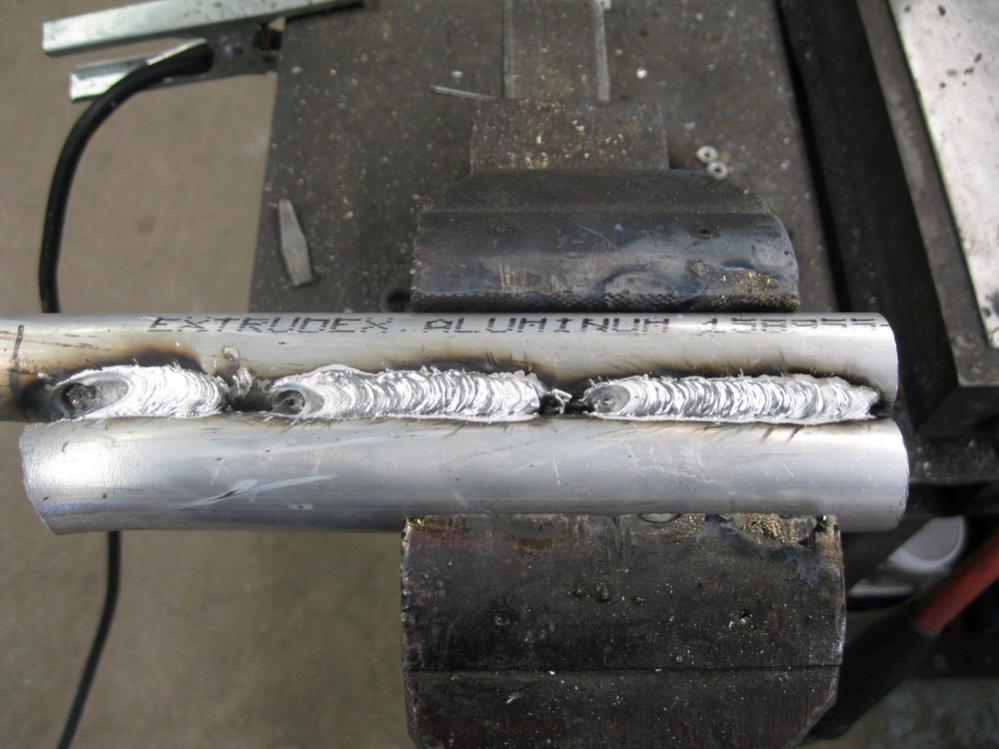

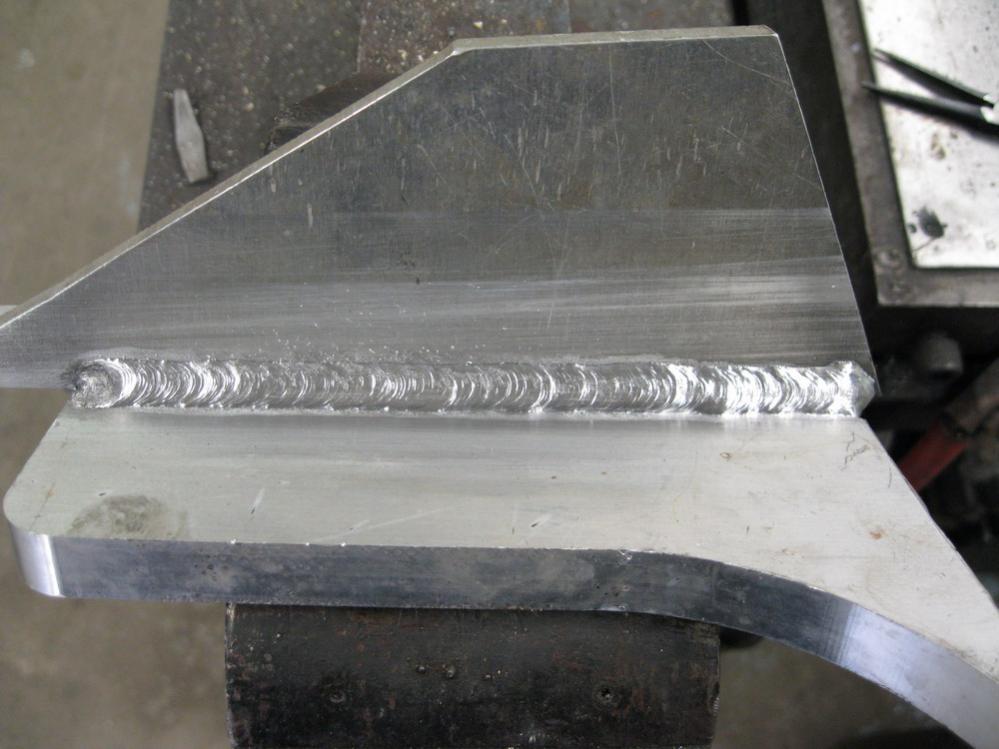

    First weld with 30A Spool Gun set on Synergic Spool, aluminum used 4043 .045
    Click image for larger version.

Name:	30A fitted with EURO for MTS250S first test weld.jpg
Views:	552
Size:	80.2 KB
ID:	12182

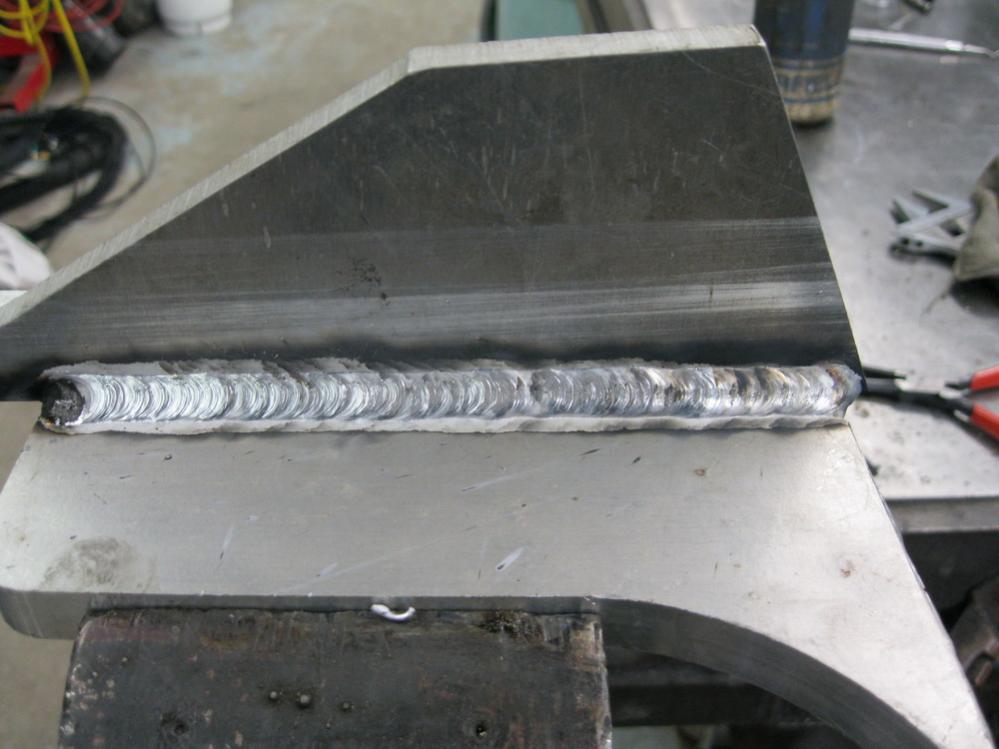

    Second weld with voltage up 1.5V
    Click image for larger version.

Name:	30A fitted with EURO for MTS250S second test weld.jpg
Views:	490
Size:	71.4 KB
ID:	12183
    Cleaned with wire brush.
    Click image for larger version.

Name:	30A fitted with EURO for MTS250S second test weld wire brushed..jpg
Views:	492
Size:	76.8 KB
ID:	12184
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  3. #3
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

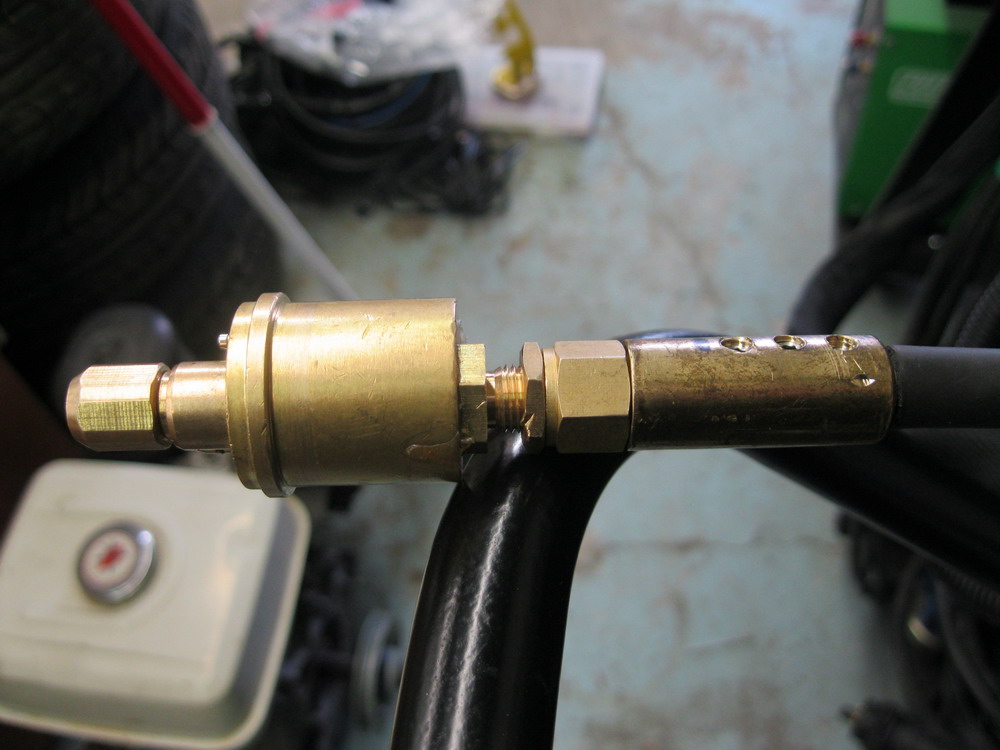

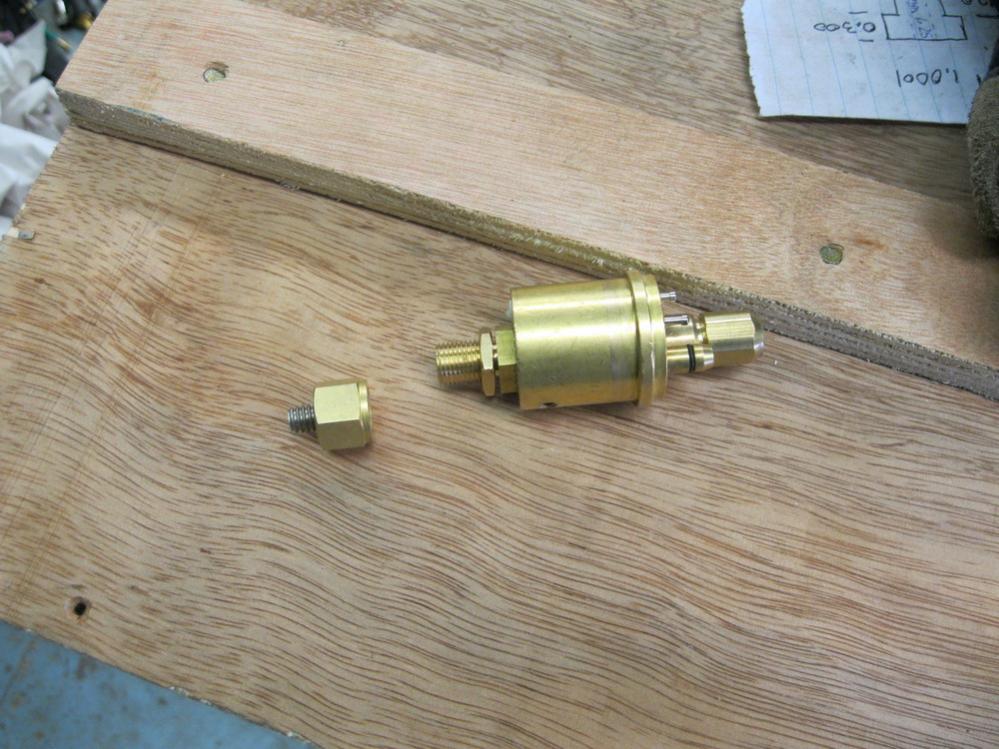

    Final fit of EURO handle and 30A spool gun.
    Click image for larger version.

Name:	30A end cut off for new end EURO 3.jpg
Views:	482
Size:	137.8 KB
ID:	12185Click image for larger version.

Name:	30A end cut off for new end EURO 4.jpg
Views:	474
Size:	139.5 KB
ID:	12186Click image for larger version.

Name:	30A end cut off for new end EURO 5.jpg
Views:	454
Size:	67.9 KB
ID:	12187Click image for larger version.

Name:	30A end cut off for new end EURO 6.jpg
Views:	448
Size:	70.8 KB
ID:	12188

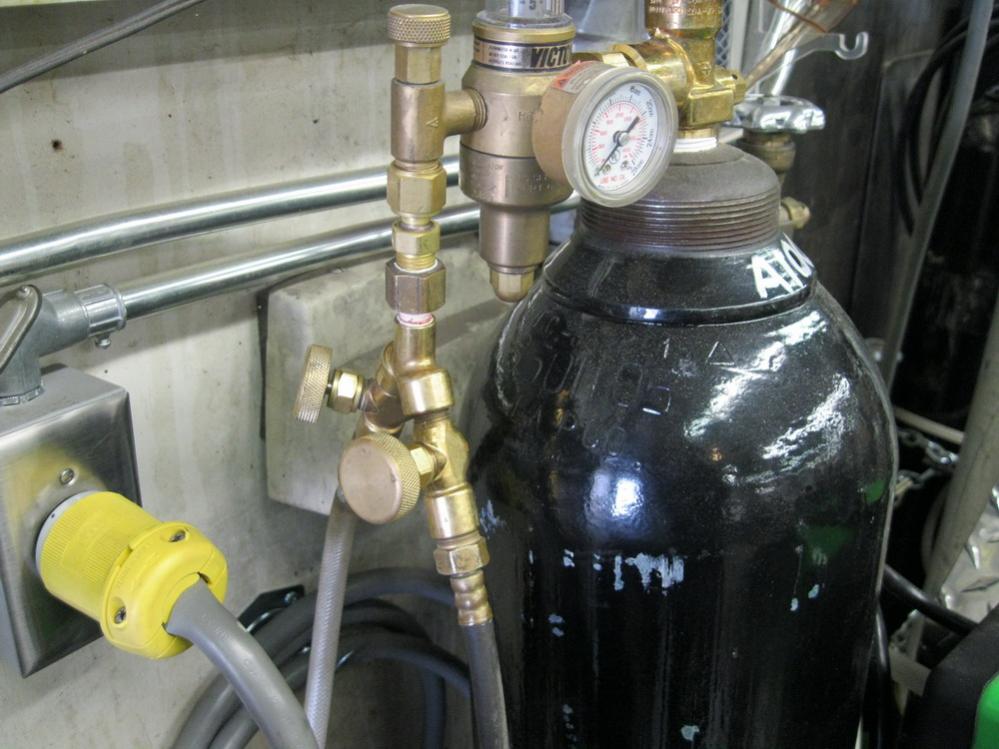

    I used the original gas fitting and got a Y manifold with shut off valves on it. One is for the 30A and the other for the welder at the back for the Tig and Mig. Spool gun has 30 foot line can go a long way around the shop.
    Click image for larger version.

Name:	30A fitted with EURO for MTS250S Y for gas.jpg
Views:	460
Size:	92.1 KB
ID:	12189Click image for larger version.

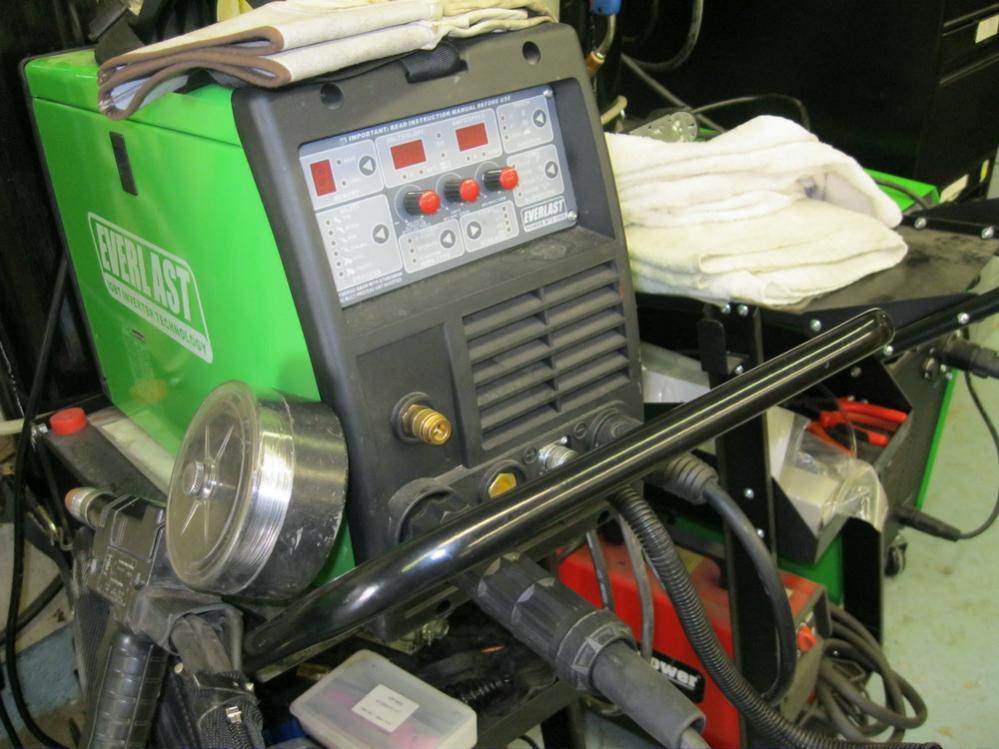

Name:	30A fitted with EURO for MTS250S.jpg
Views:	488
Size:	95.2 KB
ID:	12190
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  4. Default

    Nice job on the retrofit. I am wanting to buy a 250S myself. I take it that the spool gun from everlast will not take .045 wire? If that is so I might have to do a retrofit myself. I have used nothing but .045 wire in my spoolmatic 3. I have done some pretty thin stuff with it and like yofish, I believe The .045 gives better control.
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  5. #5
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    The Everlast spool gun worked just fine but could not drive the .045 4043 aluminum easily like the 30A needs the drive rollers from a 30A to keep it from slipping.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  6. Default

    Atta boy Kempy! You now have a REAL aluminum welding machine. Excellent job.

  7. #7
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    Yofish
    This was a good fine for $300.00 the 30A is so smooth and it did not even get hot at 220A and 25V welding aluminum for 10 minutes yesterday forgot to take picture's of the job. The MTS250S ran like a dream.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  8. Default

    Quote Originally Posted by Kempy View Post
    Yofish
    This was a good fine for $300.00 the 30A is so smooth and it did not even get hot at 220A and 25V welding aluminum for 10 minutes yesterday forgot to take picture's of the job. The MTS250S ran like a dream.
    Kempy, is yours set up like Yofish where the 30A wire speed dial does not work at the gun?
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  9. #9
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    Quote Originally Posted by TheGary View Post
    Kempy, is yours set up like Yofish where the 30A wire speed dial does not work at the gun?

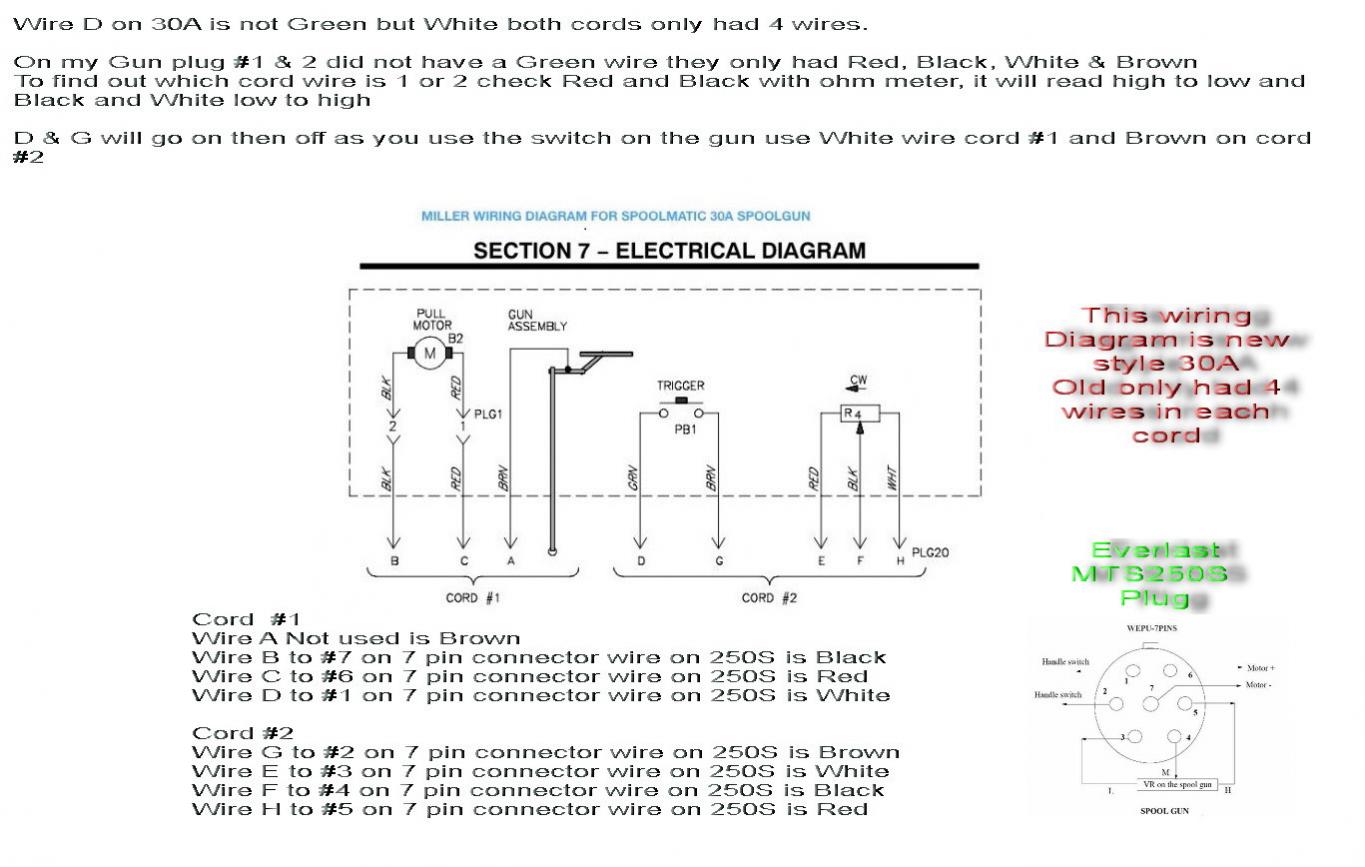

    The MTS250S uses the wire speed on the gun and it is a 10K pot and the MTS250S uses a 10K pot to run the SM200 Spool Gun on the side of it. The 30A was a very ease hookup just had to get the wires diagram for both and rewire the plug and put the power line on the Euro connector. If you need the wiring diagrams I have them.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  10. Default

    Quote Originally Posted by Kempy View Post
    The MTS250S uses the wire speed on the gun and it is a 10K pot and the MTS250S uses a 10K pot to run the SM200 Spool Gun on the side of it. The 30A was a very ease hookup just had to get the wires diagram for both and rewire the plug and put the power line on the Euro connector. If you need the wiring diagrams I have them.
    Nice, I would like the wire diagrams if its not too much trouble. I won't be doing the retrofit for a while but I would like the diagrams so I have them when the time comes. I am in the middle of revamping my shop now. So between work that comes in and working on the shop its pretty busy.
    Last edited by TheGary; 06-23-2014 at 08:09 PM.
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  11. #11
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    Quote Originally Posted by TheGary View Post
    Nice, I would like the wire diagrams if its not too much trouble. I won't be doing the retrofit for a while but I would like the diagrams so I have them when the time comes. I am in the middle of revamping my shop now. So between work that comes in and working on the shop its pretty busy.
    Not a problem just have to convert them into a JPG's because the forum can't take PDF's.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  12. Default

    Quote Originally Posted by Kempy View Post
    Not a problem just have to convert them into a JPG's because the forum can't take PDF's.
    Kempy, the next step is to mate up a complete feeder system, i.e., a Miller (or similar, they all function pretty much the same) XR box. It's been a zillion years ago but recall that was one of the reasons I went down this path; first to see if Everlast was worth crap and if so, be able to expand their platform to be useful for my needs. I think they (Everlast) are missing a good bet by not being helpful in turning their platforms into something that could expand sales. I can tell you that none of my welder buds that are serious production people would EVER consider an Everlast power supply if it couldn't drive a serious box/gun. Take your pick: Miller, Lincoln or MK. For me, the 'worth a crap' question has been answered in the affirmative. From my admittedly small leap of faith, if all things be equal, I'm quite surprised at the quality of the two Everlast machines I have and the service (so far) that I've received. I've pushed the crap out of the little rat welder and it just keeps on keepin' on. This is no ####, I prefer it to any machine I have for stick. BUT, I'm entirely a 1/8 to 3/32 guy.

    As you have so elegantly demonstrated, it ain't that big of a deal to make it work with a spool gun. No magic there. Congratulations, I know that I'd have not a problem building a boat with your setup. You have a power supply that has the 'stones' and now you have a gun to match it. I've also said this several times before: I've hooked up numerous combinations of boxes/guns to a crazy quilt of power supplies ALL with the help whoever I was dealing with, ALL helpful and did so with cheerful willingness. EVERLAST guys, listen up.

    Also, do not think that the 30A is not a capable steel welder! You may find that you'll retire that Binzel but for bench work. However, as bad as my wrists are, the spoolgun weight is just too much.

  13. Default

    Quote Originally Posted by Kempy View Post
    Yofish
    This was a good fine for $300.00 the 30A is so smooth and it did not even get hot at 220A and 25V welding aluminum for 10 minutes yesterday forgot to take picture's of the job. The MTS250S ran like a dream.
    Kempy, where did you find a 30A for $300? That is a steel for that gun.
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  14. Default

    Quote Originally Posted by Kempy View Post
    The Everlast spool gun worked just fine but could not drive the .045 4043 aluminum easily like the 30A needs the drive rollers from a 30A to keep it from slipping.
    sounds like Everlast needs to make some new style drive rolls for their spool gun. Then the retrofit might not be needed. Unless of course a person already owns a perfectly good spool gun already . which is the case many times with customers that have been welding for some time. Also lets face it sometimes it just doesn't pay to reinvent the wheel when an outstanding product already exists and is widely used.
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  15. #15

    Default

    Same drive rolls that fit the miller guns up to the 200 will/should fit.

  16. #16
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    Quote Originally Posted by TheGary View Post
    Kempy, where did you find a 30A for $300? That is a steel for that gun.
    I found it on Kijiji looked for a will then one came up. Have to put in 30A, Spoolgun, Spool Gun, or Miller Spoolmate 30A.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  17. #17
    Join Date
    Oct 2012
    Location
    Canada, Suttonwest, Ontario
    Posts
    676

    Default

    Quote Originally Posted by performance View Post
    Same drive rolls that fit the miller guns up to the 200 will/should fit.
    The drive roll did fit the SM200 but I did some test with and it had a hard time feeding the .047 5356 wire the gun is only designed for .030"/0.80mm wire and it is a 60% duty cycle also the SM200 will work fine when I am doing steel because the 30A is sold and made for aluminum and soft metal to run at 100% duty cycle at 200Amps. it will push .062 5356 aluminum wire and soft metal wire up to .045.
    The 30A starting price is at:$ 1,273.00 US and up the SM200-N is $325.00 CA.
    Everlast PowerTig 325EXT (Canada)
    Everlast Power I Mig 250 (Canada)
    Everlast PowerPlasma 80S (Canada)
    Everlast PowerCool W300 (Canada)
    Everlast PowerMTS 250S Fitted with a 30A Spoolgun(Canada)
    Miller Dynasty 400 wireless(Canada)
    Millermatic 252 plus 30A Spoolgun(Canada)

  18. Default

    Quote Originally Posted by Kempy View Post
    The drive roll did fit the SM200 but I did some test with and it had a hard time feeding the .047 5356 wire the gun is only designed for .030"/0.80mm wire and it is a 60% duty cycle also the SM200 will work fine when I am doing steel because the 30A is sold and made for aluminum and soft metal to run at 100% duty cycle at 200Amps. it will push .062 5356 aluminum wire and soft metal wire up to .045.
    The 30A starting price is at:$ 1,273.00 US and up the SM200-N is $325.00 CA.
    Yes, after looking at the Everlast spool guns , they do not have near the duty cycle of the 30A . I had not looked at the spool gun line up before now so I did not realize that they are that light of duty. I will probably adapt my spoolmatic 3 to the 250s machine. Since I already have it and the only befit of the 30A over the 3 is that the spool holder rotates. Also it is built like a tank and can take a lot of abuse and still keep ticking. The 3 has the same 14 pin connector so the wiring will be the same as the 30A. I will probably make a short adapter cable for it and keep the 14 pin setup on the 3 since I use it on my trailblazer 302 and my millermatic 200 also , depending on where I am and what I am doing. After I get the 250S the MM200 will stay in my shop and the 250S will take its place in my trailer for more portable needs. If I find a smoking deal like you did then I will get a 30A
    Last edited by TheGary; 06-24-2014 at 07:46 PM.
    Miller 302 gas drive
    millermatic 200 mig
    miller spoolmatic 3 spool gun with 100ft ext.
    2014 Everlast PP60S plasma
    thermal arc 250 GTS inverter
    2016 Everlast 250EX
    miller tig cooler
    2015 Everlast MTS250S
    Miller 30A spool Gun
    Miller xtreme 12VS wire feeder
    Linde CM 85 shape cutter

  19. #19

    Default

    Quote Originally Posted by Kempy View Post
    The 30A starting price is at:$ 1,273.00 US and up the SM200-N is $325.00 CA.

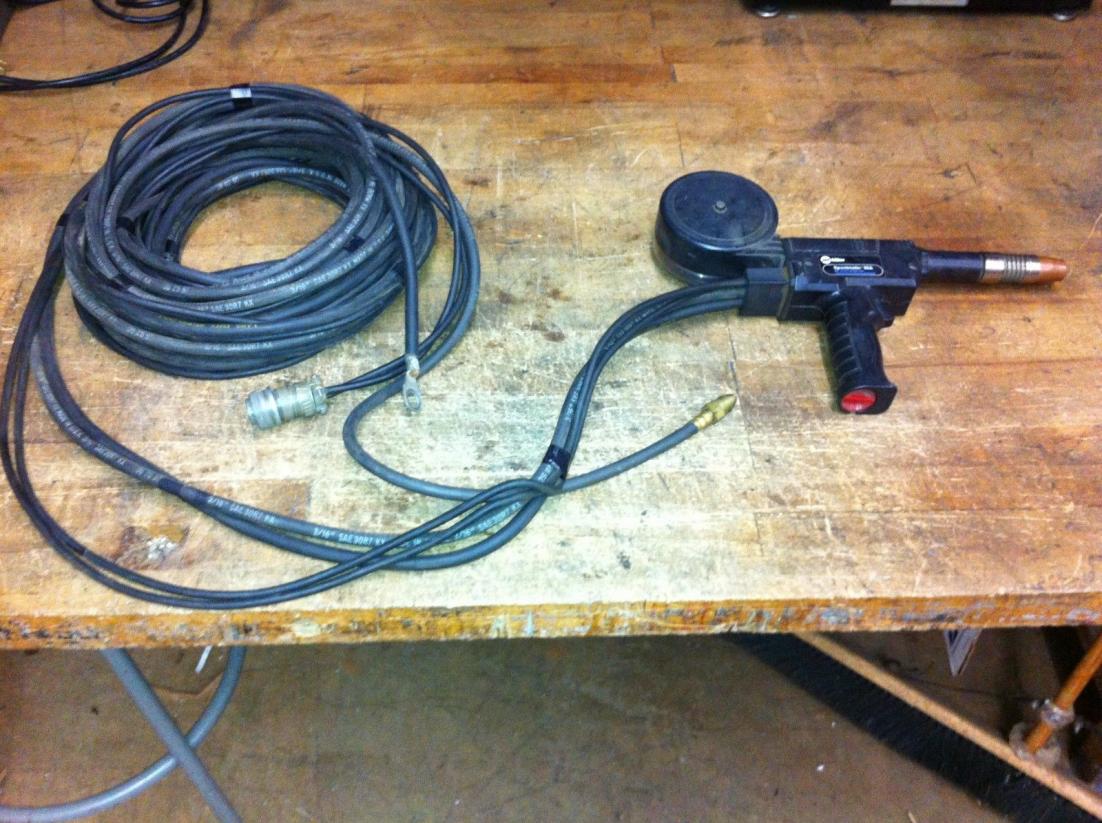

    Here's a brand new 30A with the HD air cooled tube for $775+ shipping but they only have one. http://www.ebay.com/itm/Item-for-signman1960-/251568732773?pt=LH_DefaultDomain_0&hash=item3a92aa 3a65
    Maybe Everlast will find a heavy duty spoolgun to add to it's lineup soon.
    Last edited by zoama; 06-24-2014 at 09:53 PM.
    2013 250EX : SSC Pedal : I-MIG 250P 20' Profax gun : Power Plasma 60 p80 torch : 3M Speedglas 9100XX : Evolution Rage 3 DB cold saw

  20. #20

    Default

    A niche market does not necessarily mean that it is sufficient an sustainable once the "pipeline" is full. We have to look at the big picture. The Guns we sell come off the same assembly line that the Miller Spoolmate series comes off of. Same, if not better duty cycle, same parts...on the 3035 and smaller 100 series gun. The Barrel is different on the 200 but the drive roll should be the same as the Spoolmate 200. These guns are (its not a secret) manufactured by North in China. North manufacturers OEM trafimet, which sells the same gun too, and for Miller and a host of others. Its an extremely well built product overall. Spool guns ( as many of you know) are largely an American thing. Much of the world uses a simple teflon liner and suitable wire and welds with the main wire feeder. We seem to see and have problems where other places accept it and find a way of doing it. I am not saying that we are ignoring the possibility of having a bigger gun, but due to the lack of worldwide demand, China doesn't have a wealth of spool gun manufacturers, and the 200 a unit is about as big as it comes.

Similar Threads

  1. how do you like your MTS250S and can you answer some questions
    By TheGary in forum MIG Welding (GMAW/GMAW-P/FCAW)
    Replies: 39
    Last Post: 05-05-2014, 11:21 PM
  2. Mig 25 Torch MTS250S
    By colddainhell in forum MIG Welding (GMAW/GMAW-P/FCAW)
    Replies: 4
    Last Post: 03-27-2014, 11:39 PM
  3. MTS250S weld Genie on job site
    By Kempy in forum Multi-Process Units (TIG,Stick,Plasma/MIG,TIG,Stick Combo units)
    Replies: 8
    Last Post: 12-11-2013, 07:40 PM
  4. MTS250S Code 802 ??
    By Kempy in forum Multi-Process Units (TIG,Stick,Plasma/MIG,TIG,Stick Combo units)
    Replies: 63
    Last Post: 07-29-2013, 12:31 AM
  5. Changed Control Plug MTS250S
    By Kempy in forum Multi-Process Units (TIG,Stick,Plasma/MIG,TIG,Stick Combo units)
    Replies: 10
    Last Post: 05-09-2013, 04:28 PM

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
