Thread: Plasma Table Build - Plasma Bot 4.0

  1. #201

    Default

    I'm using the relay only to turn the plasma cutter on and off. The yellow and black wires (top circle) on the breakout board are for my THC. Your diagram makes perfect sense. I was thinking backwards.

    Where do I wire the torch output on my pp60c? I was thinking that pins 1 and 2 being the start and stop took care of firing the torch.
    Lincoln Eagle Engine Drive
    Everlast MTS 250
    Everlast Power Tig 225lx
    HTP Mig 2400
    Everlast Power Plasma 60C --> Just need to finish my CNC Plasma Table!
    Miller Spectrum 375 Extreme Plasma cutter
    Victor cutting torch
    HF 20 Ton Shop Press
    HF 4x6 Band Saw
    HF Air Compressor
    Northern Tool Drill Press


    www.murphywelding.com

  2. #202
    Join Date
    May 2012
    Location
    Disneyland
    Posts
    2,662

    Default

    Pins 1 and 2 on the CNC plug should fire the torch, so they are the two that connect to the relay board. The relay board is for outputs only. The breakout board has both outputs and inputs.
    Where do the two black wires go to that are on the top right of the relay board? (the outputs of relay 3) What do you have wired to the inputs of your relay board?
    Which breakout board do you have? Nevermind, I just figured out from your picture that it must be the PBX-RF.

    Since your THC will provide the arc signal, you won't need those pins in the CNC plug. So the only other thing you need is the torch output from pins 5 and 7 to go to your THC. I'm not sure if you have sorted out the voltage because of the internal resistors. I've been reading too many plasma build logs, so I lost track of where you are with that. Your THC needs full arc voltage, but the PP60 has only divided voltage and full with two dropping resisters in series. You might have to do some internal work to make that work. I guess you could pull full arc voltage right from the front panel connectors, but it would be nice to have that all bundled in the CNC cable.
    I tend to work one piece at a time, so I would get the torch working under software control, then start in on setting up the THC after that.
    Last edited by Rambozo; 09-06-2012 at 06:05 AM.
    Long arc, short arc, heliarc and in-the-dark!

  3. #203

    Default

    The top two black wires came pre-wired from probotix.
    Pins 5+ and 7- according to the thread on voltage dividers are for full arc voltage.

    I have ran some g-code with the THC on and the plasma cutter off, could this cause some problems?

    I'm still under the weather and going to the doctor today, I'm hoping to get this figured out Friday morning. It seems to be something small.
    Lincoln Eagle Engine Drive
    Everlast MTS 250
    Everlast Power Tig 225lx
    HTP Mig 2400
    Everlast Power Plasma 60C --> Just need to finish my CNC Plasma Table!
    Miller Spectrum 375 Extreme Plasma cutter
    Victor cutting torch
    HF 20 Ton Shop Press
    HF 4x6 Band Saw
    HF Air Compressor
    Northern Tool Drill Press


    www.murphywelding.com

  4. #204

    Default

    Hope the DR fixes you up it’s a bummer not feeling good.
    Rambozo is right work on one thing at a time start without the THC just the trigger of the torch first. Then add the THC after you have the torch triggering.
    Since the THC need the plasma on for its signals, running G-code may not tell you anything of value with the problem at this point.
    Rambozo has more experience then I with THC, I will stay on the bench and watch from there and learn more. It’s better to have only one person directing help when everybody is remote.

    Get well soon
    Tom

    Everlast PM256
    Millermatic 180
    Hypertherm PowerMax 65 with machine torch
    Longevity Force Cut 80I
    DIY CNC table for plasma/routing
    13" metal lathe
    Small Mill
    ect, ect.

  5. #205
    Join Date
    May 2012
    Location
    Disneyland
    Posts
    2,662

    Default

    Quote Originally Posted by acourtjester View Post
    Rambozo has more experience then I with THC...
    Not likely! Considering I have zero experience with any THC or plasma, but I understand the principles behind it, and have been working with CNC off and on for around 30 years.
    Long arc, short arc, heliarc and in-the-dark!

  6. #206

    Default

    I sent Mark a PM and asked if he could move this thread to the automated systems CNC category. I appreciate all the help that everyone has given me, but I don't want to take away from the other projects that are being posted. I felt that I would be finished with my table after 2 or 3 months tops. I was close to that goal I made my first post a couple of weeks before I received my gantry kit and tubing for the table. There were periods of 2-3 weeks when I could not work on my table. Either paying welding jobs came up or work, and then in July when my son was born that prolonged things (but that's a good thing!).

    I do appreciate all the help, and I have learned a lot from everyone's advice. I've been taking notes especially with trouble shooting and have saved and printed all the diagrams that everyone has posted. Everyone has been a tremendous help and I really appreciate it.

    I don't want to take away from some of the other projects so it's time to move the thread to a more appropriate category.

    Thanks
    Sean
    Lincoln Eagle Engine Drive
    Everlast MTS 250
    Everlast Power Tig 225lx
    HTP Mig 2400
    Everlast Power Plasma 60C --> Just need to finish my CNC Plasma Table!
    Miller Spectrum 375 Extreme Plasma cutter
    Victor cutting torch
    HF 20 Ton Shop Press
    HF 4x6 Band Saw
    HF Air Compressor
    Northern Tool Drill Press


    www.murphywelding.com

  7. #207

    Default

    OK, got some good news! I called Probotix and Jeremy helped me get going (in theory!). The doctor says I have bronchitus or maybe pneumonia (waiting on the xrays) so I can't do anything outside in the heat. I spent about 15 minutes on the phone and he should have me going. I've learned to ask people for help over the years, and in doing so I learned I made a simple but funny mistake!

    The front of my control box there is a 110v plug and I plugged the walwart from the relay into the plug. It turns out that is why the first two relays came pre-wired. The plug is for a spindle so the relay can turn it on. I plugged the walwart into my power strip and the green LED's lit up! I did have a couple of things wrong in MACH3. After I plugged up the relay the right way he took me to the diagnostic screen and had me click the spindle control tabs and only the mist relay would turn on and off.

    We went back to ports and pins I had the enable 1,2,3 boxes enabled (green checks). I should have had the outputs 1,2,3 boxes enabled (green checked). We cleared that up and now all three relays are clicking and in theory the plasma cutter should turn off and on.

    I had to get out of this Mississippi heat. If I feel better tomorrow I may try to cut some hinges for my smoker that I desperately need to finish.

    On a side note I asked about the LED's because of the advice from the earlier post, and that help get things going in the right direction. I felt that it was something small. I had to laugh at myself for using the spindle plug for the relay power!
    Lincoln Eagle Engine Drive
    Everlast MTS 250
    Everlast Power Tig 225lx
    HTP Mig 2400
    Everlast Power Plasma 60C --> Just need to finish my CNC Plasma Table!
    Miller Spectrum 375 Extreme Plasma cutter
    Victor cutting torch
    HF 20 Ton Shop Press
    HF 4x6 Band Saw
    HF Air Compressor
    Northern Tool Drill Press


    www.murphywelding.com

  8. #208
    Join Date
    May 2012
    Location
    Disneyland
    Posts
    2,662

    Default

    Yeah the LEDs are really put there for troubleshooting, and are very handy. Much more so for things that don't click like relays. I was thinking about what you could be using the 3rd relay for. That's the problem with stuff that is pre-wired, you don't really learn what is going on. By using 4 axis drivers, you lost the ability to have the ribbon cable from the 4th axis to the relay board. That was a clean setup. I wasn't sure about how you had your inputs and outputs configured on your breakout board. I'm glad to hear you have it all sorted out. Will you have enough inputs left for limit switches? Are you using the Arc Good signal from your THC to an input?
    Because of the inline resisters inside the PP50, you may have an issue with your THC not seeing full arc voltage. As long as it's in the range it can control, it will function fine, but what is displayed might not be the actual voltage.

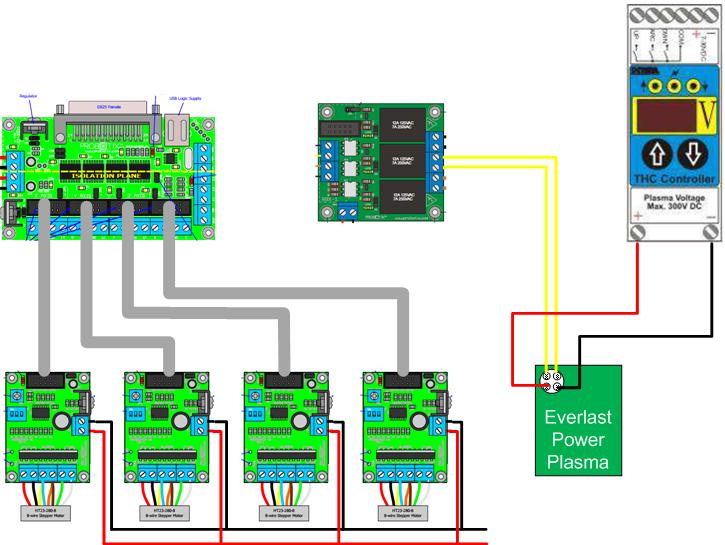

    I started a sketch of your wiring If you have Visio I can send it to you to finish out.
