Thread: Project 7 from d3javoodoo ^custom wheel design^

  1. #1

    Default Project 7 from d3javoodoo ^custom wheel design^

    Here are a few pics of another project of mine that I've been working on ... For a while now I've had some ideas in relation to automobile design in every aspect. Recently though I have began to lay the groundwork for a (custom) rolling chassis to support multiple small scale concept vehicle designs.
    Click image for larger version.

Name:	IMG_0181.jpg
Views:	165
Size:	141.3 KB
ID:	2884 Click image for larger version.

Name:	IMG_0180.jpg
Views:	205
Size:	142.6 KB
ID:	2883

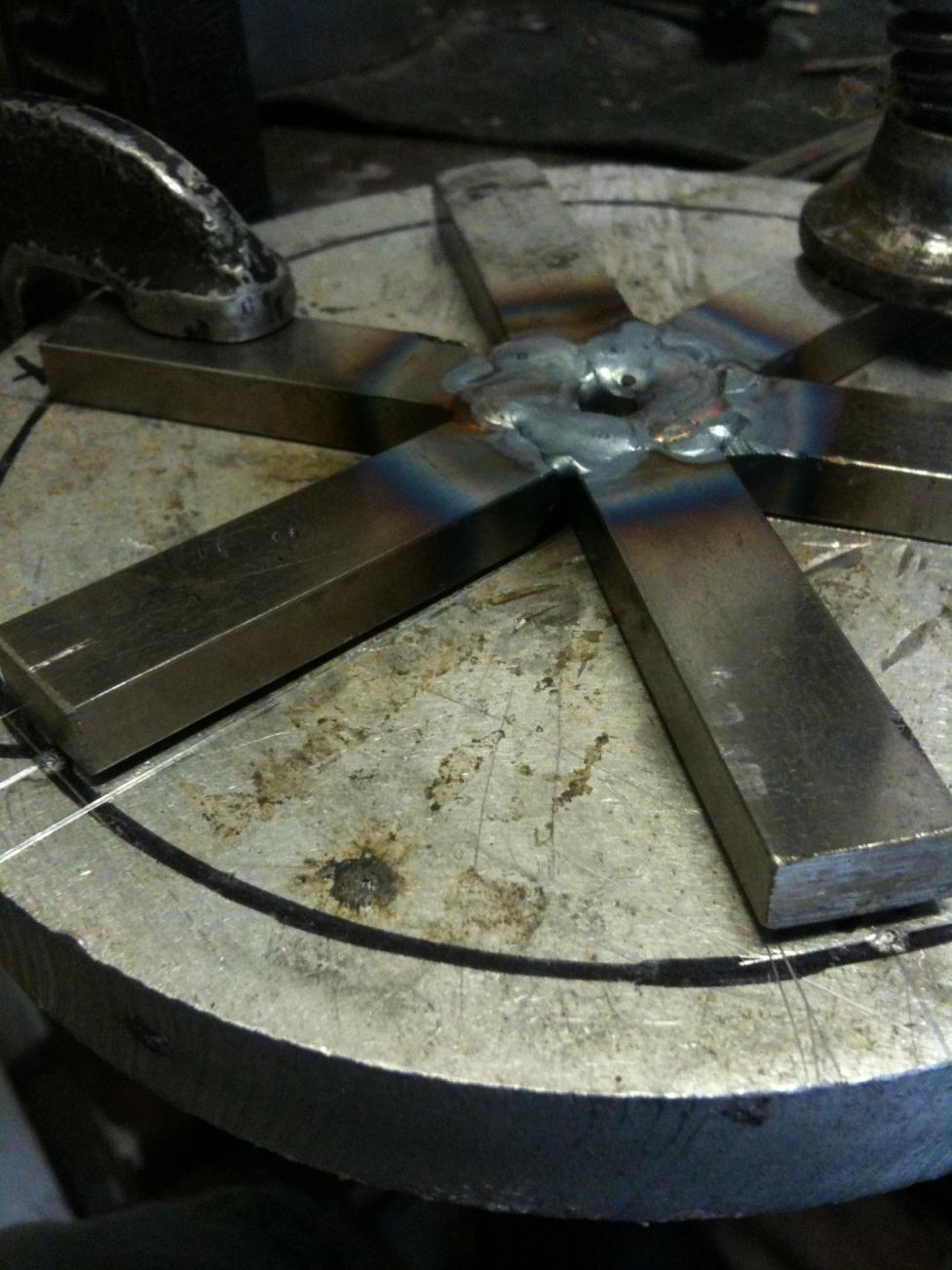

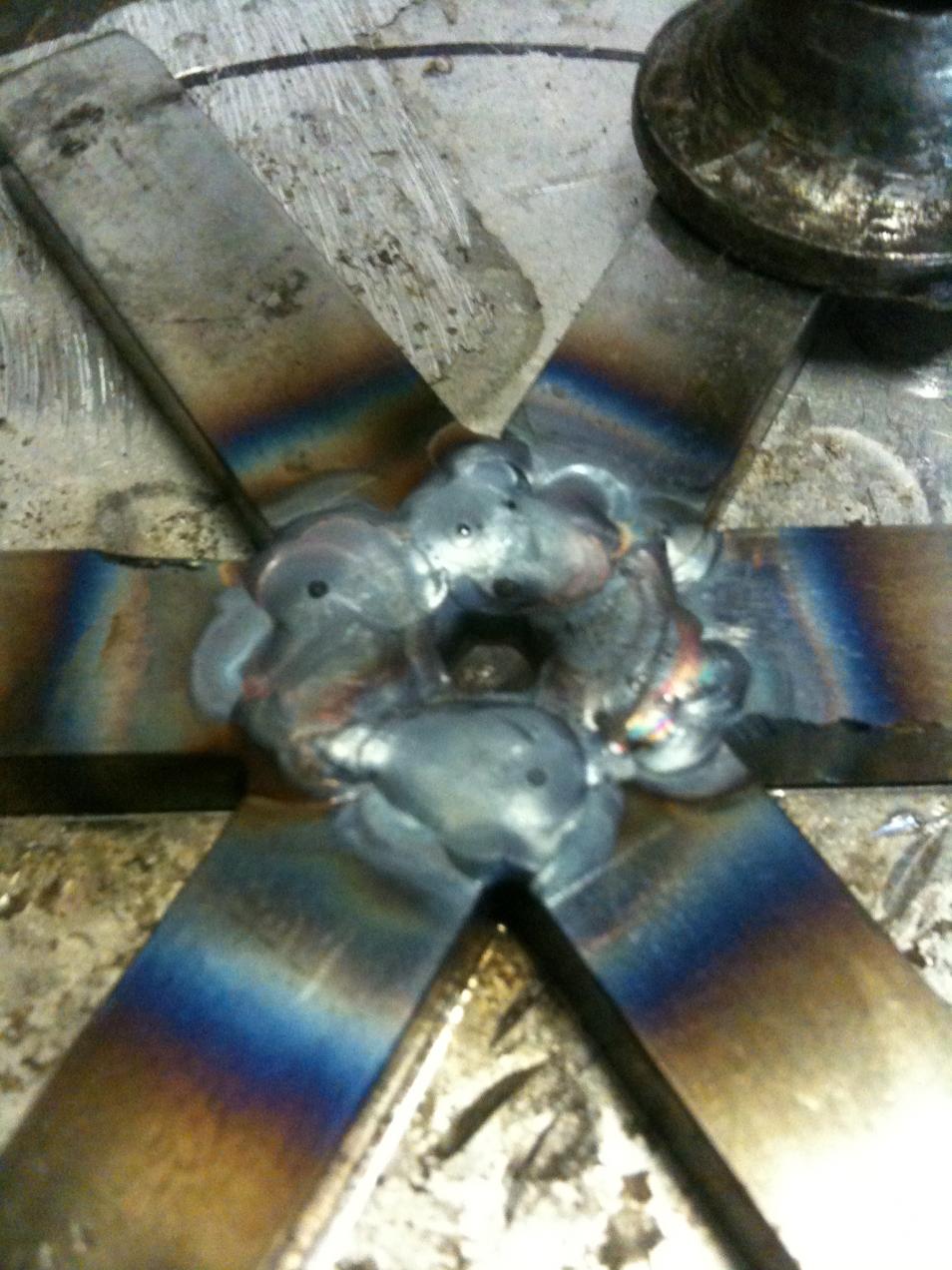

    these are images of a single wheel design currently in progress. I choose to use 1/4" x x1/2" crst stock to begin fabrication of the bulk of the spokes, & plastic pipe section for the center wheel well. Eventually when the original is complete I'll make a mold to reproduce in different mediums like plastic, aluminum, bronze, etc.
    As a man thinketh, so shall he be.

  2. #2

    Default Recent pics...

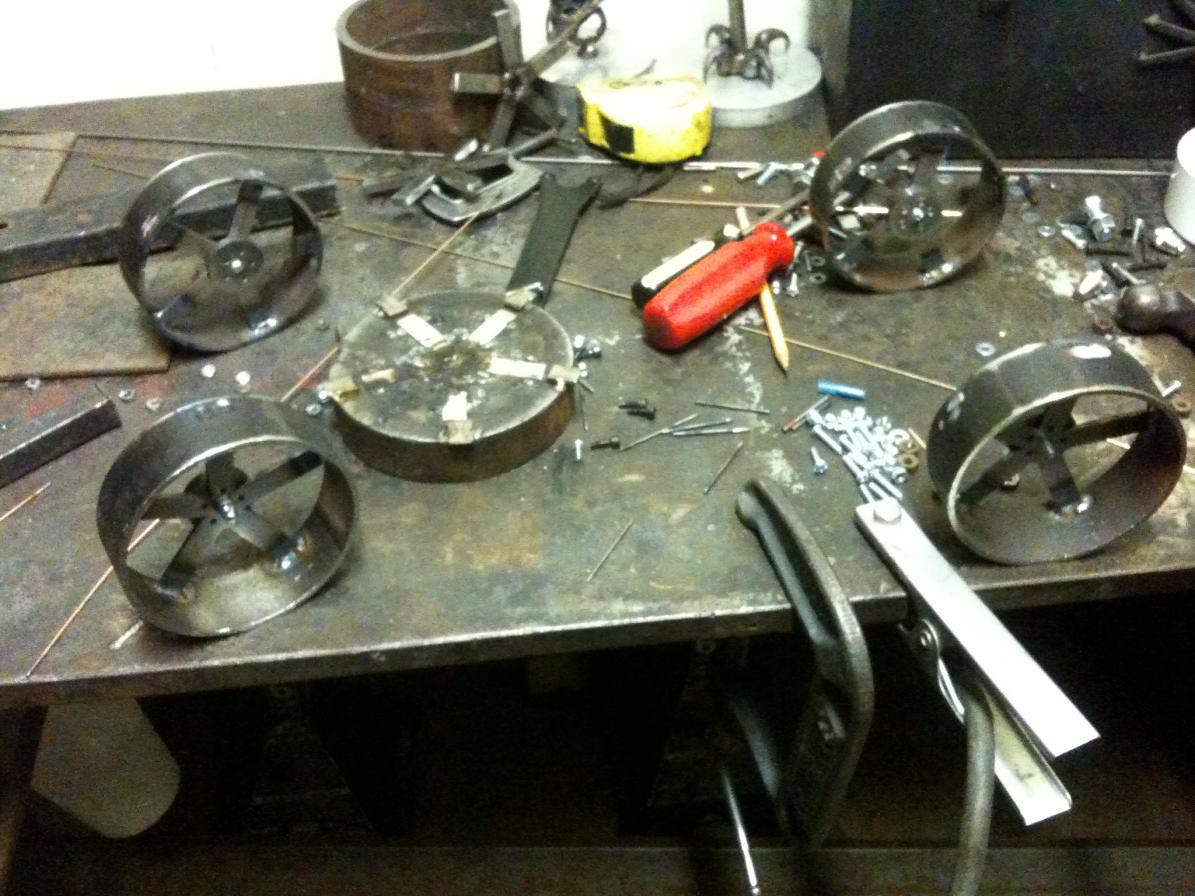

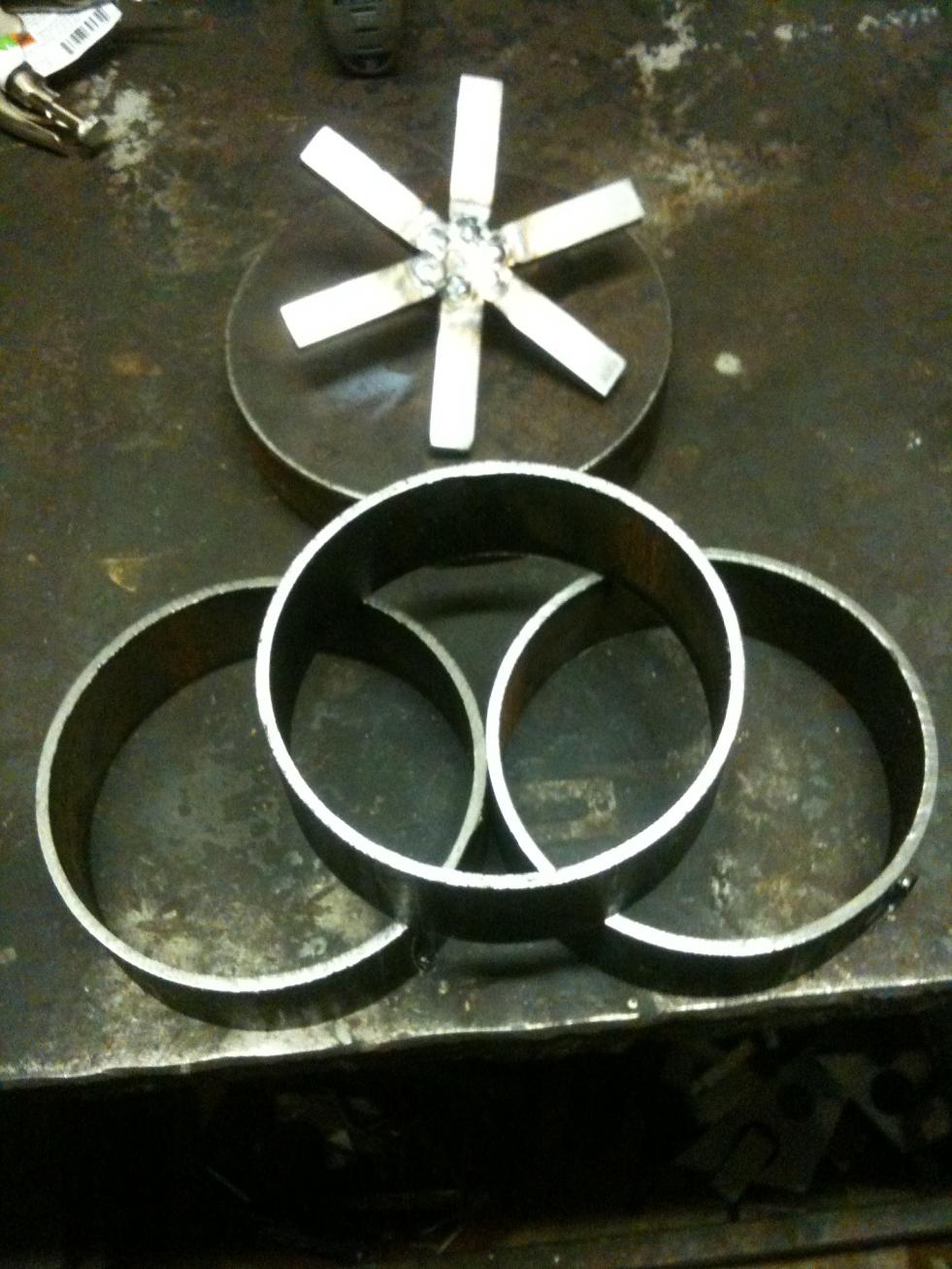

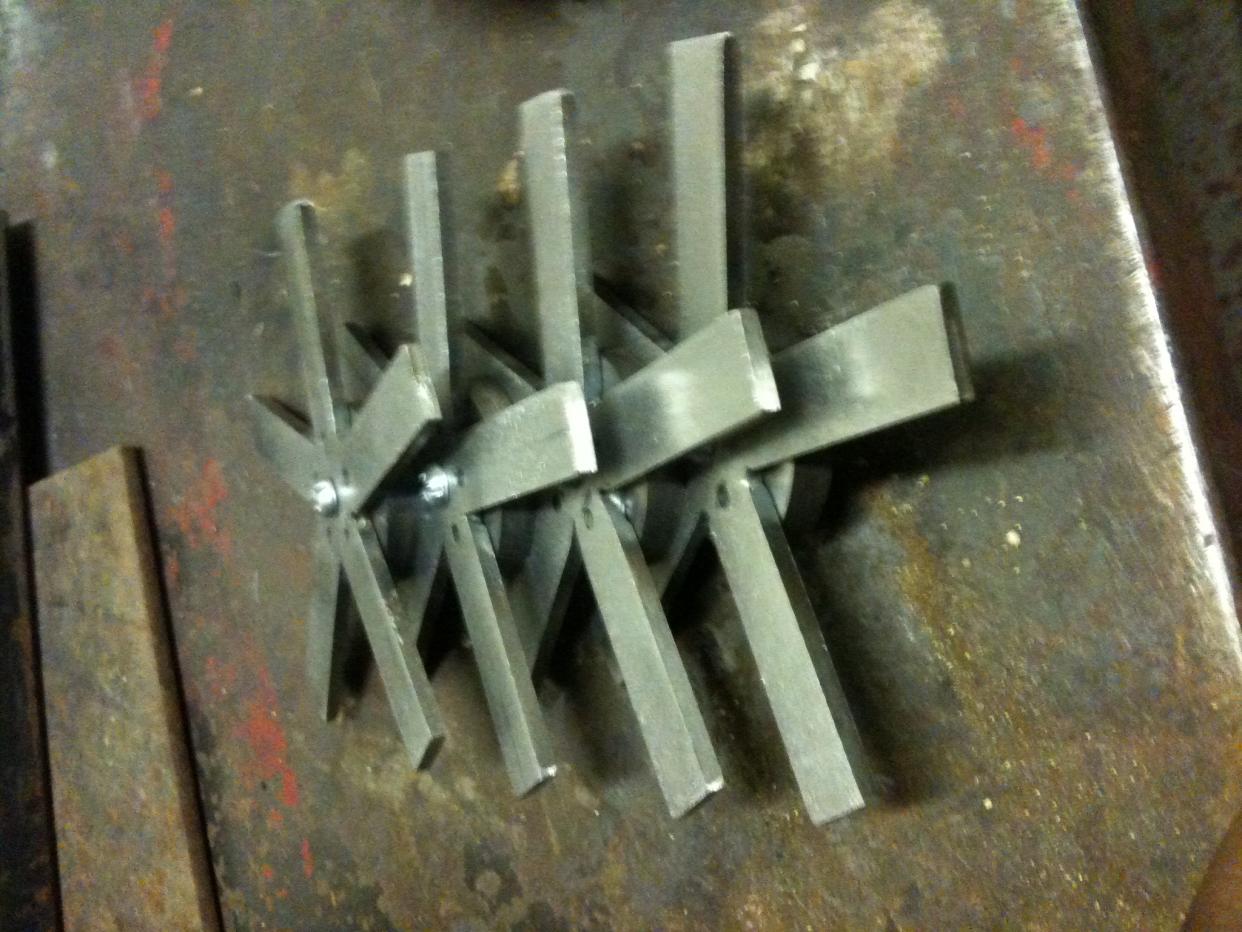

    Here are a few updated photos of this 6 spoke design, which may or may not be used for the next model..

    Click image for larger version.

Name:	IMG_0257.jpg
Views:	196
Size:	141.7 KB
ID:	2987 Click image for larger version.

Name:	IMG_0309.jpg
Views:	203
Size:	142.7 KB
ID:	2988


    Click image for larger version.

Name:	IMG_0310.jpg
Views:	185
Size:	142.3 KB
ID:	2989 Click image for larger version.

Name:	IMG_0324.jpg
Views:	164
Size:	143.1 KB
ID:	2990otos
    As a man thinketh, so shall he be.

  3. #3

    Default A labor of love...

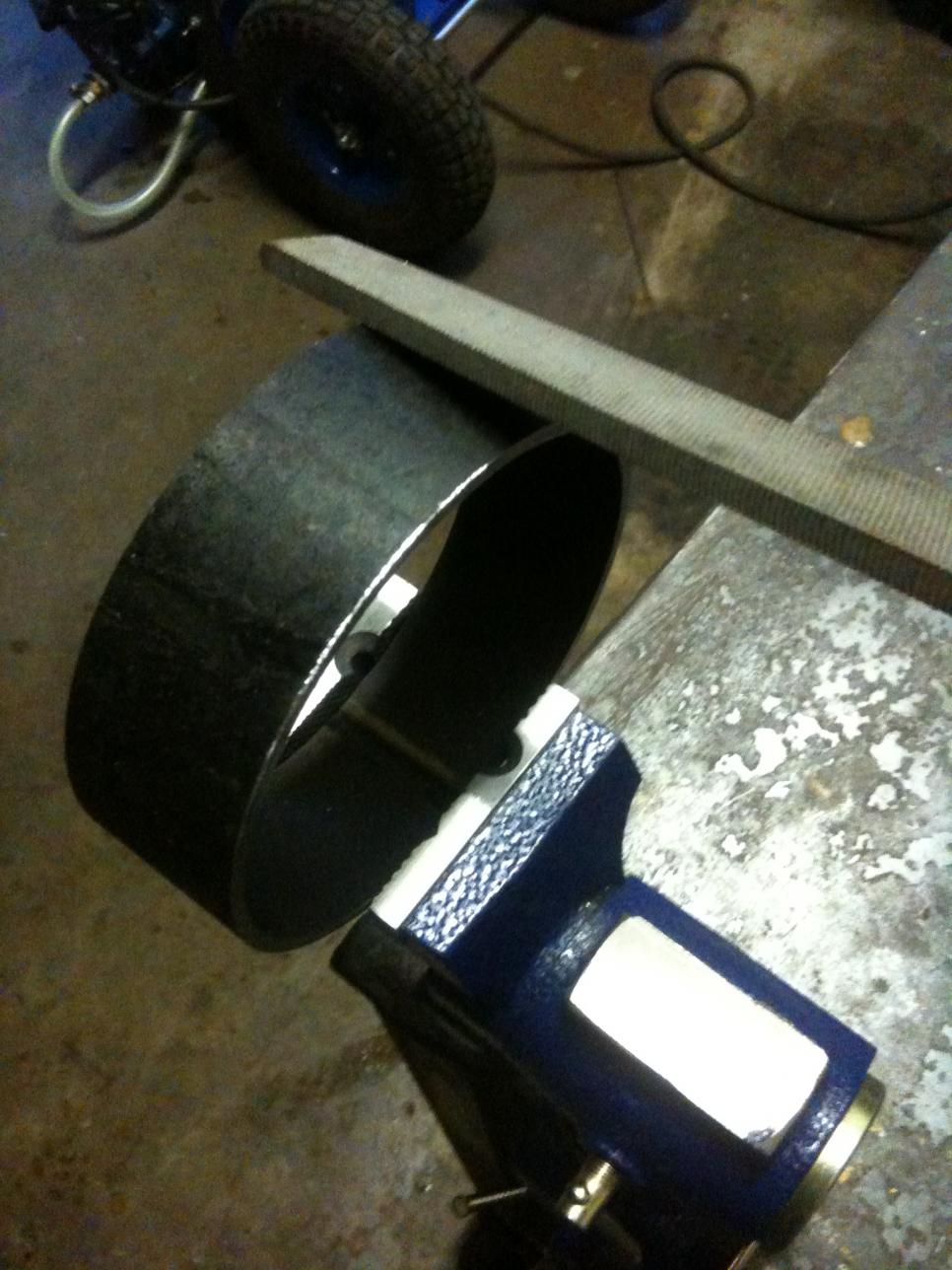

    Well this afternoon after that hot sun went down, I got a little work done.

    Click image for larger version.

Name:	IMG_0037.jpg
Views:	173
Size:	144.5 KB
ID:	3025

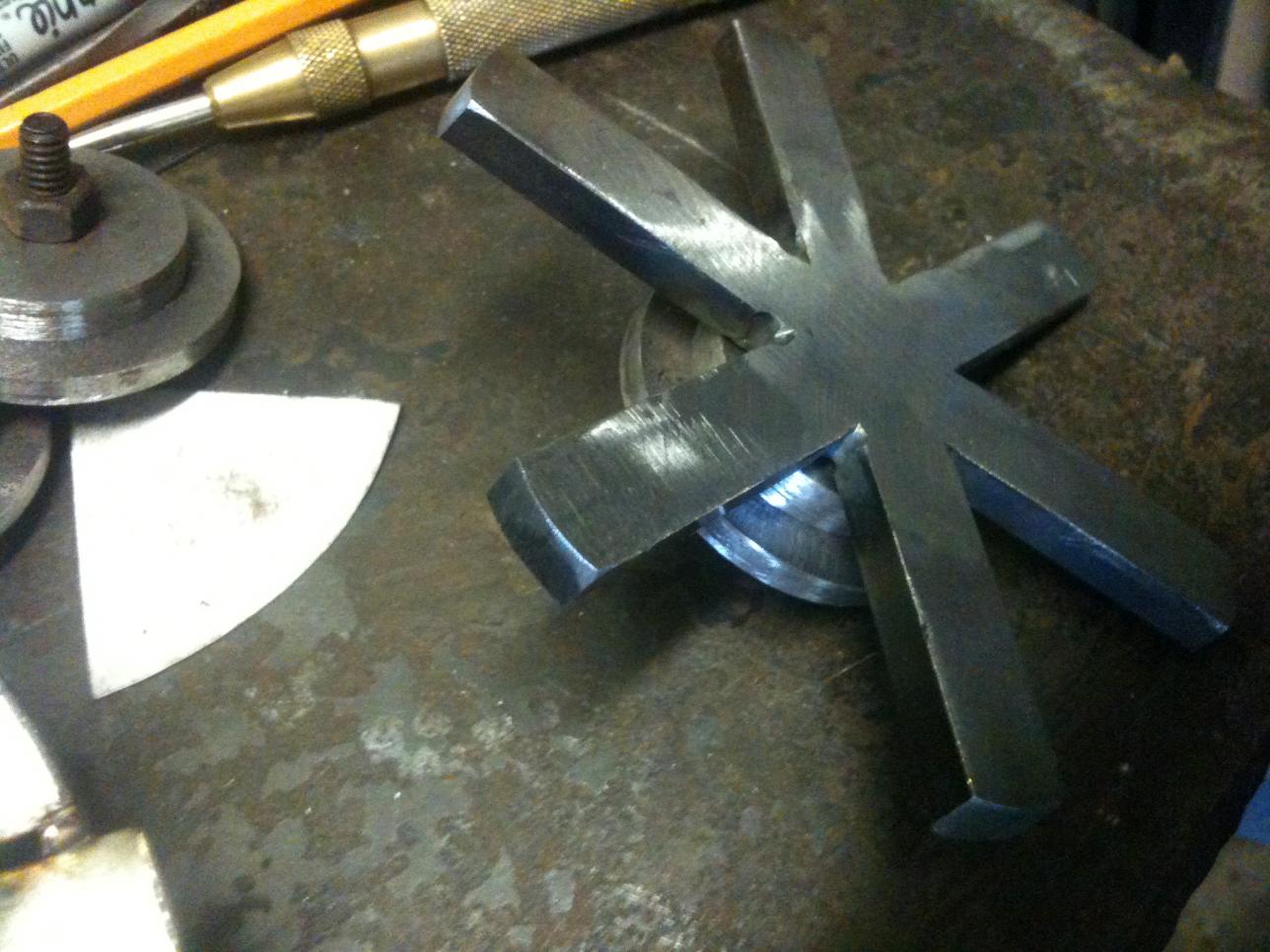

    I'm a few steps closer to a rolling chassis...

    Click image for larger version.

Name:	IMG_0038.jpg
Views:	160
Size:	143.5 KB
ID:	3026 Click image for larger version.

Name:	IMG_0040.jpg
Views:	194
Size:	145.2 KB
ID:	3027

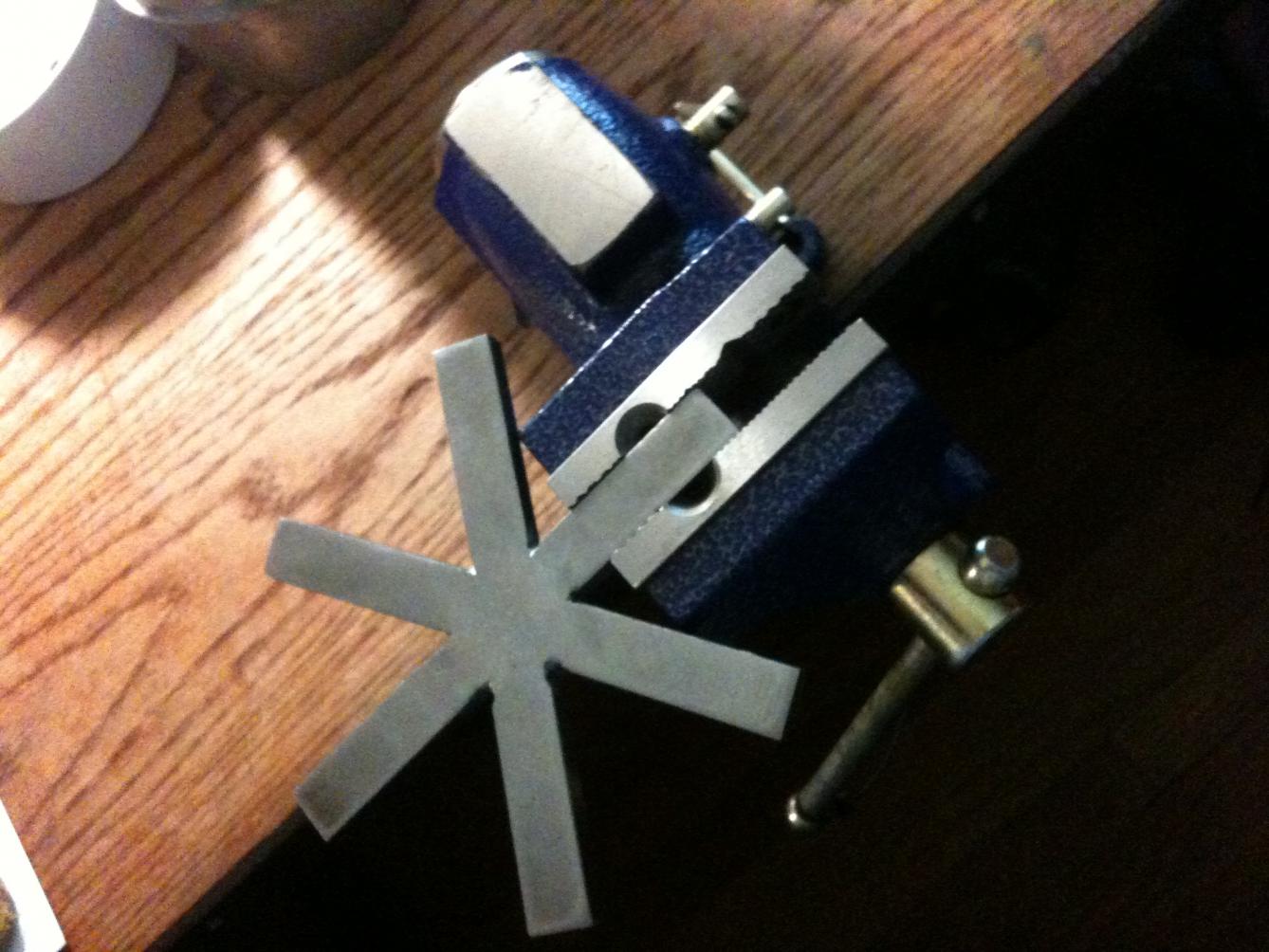

    @ this point I've chosen to use 1/8" instead of 1/4' to decrease weight.
    As a man thinketh, so shall he be.
