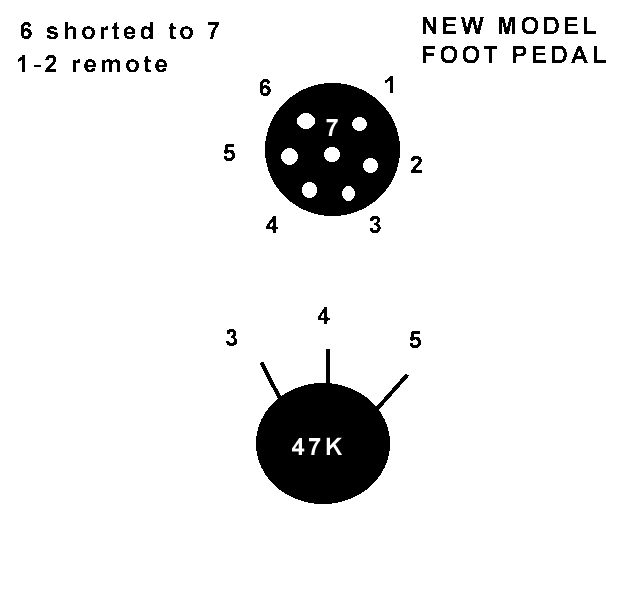

We're receiving a lot of request for the front panel/foot pedal pinout. Here is the pin out for the new IGBT line. Always open the pedal and check it yourself, to make sure you have the same pedal.
Pin 4 is the center of the potentiometer.
Printable View
We're receiving a lot of request for the front panel/foot pedal pinout. Here is the pin out for the new IGBT line. Always open the pedal and check it yourself, to make sure you have the same pedal.
Pin 4 is the center of the potentiometer.
This is the pin out for the Super200PI.

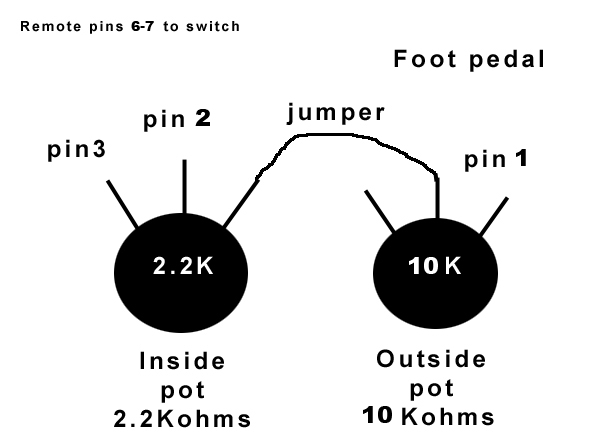

Pedals with 2.2K and 10K, like CT and Super200P
The 210EXT foot pedal pinout is:
1 - 3 is the trigger switch
5 - 2 is 10-1K ohms
5 - 4 is 1K to 10 ohms
